We are a leading and well recognized name in the field of offering C frame Hydraulic Presses. Finding applications in areas like Embossing, Punching, Piercing, Straightening and others, these C frame hydraulic presses can be made available up to 200 ton capacity with standard dimensions. Further, these C frame hydraulic presses can also be made available with optional features as per customer’s request.

Features :

• Superior flexibility because of short retooling time.

• Lower maintenance.

• Longer service life standards through use of maintenance-free bearing surface

• Faster and precise RAM guides

• Low noise level

• Integrated RAM positioning sensors

• Possibility of mounting in any positions

Having ample throat and open sides, these presses provide easy access to die from three sides as well as permit loading and unloading of wide and irregular work pieces. For high-speed production, these presses can also be equipped with

• Removable bolsters

• Die cushion

• Automatic feeding

• Material handling systems

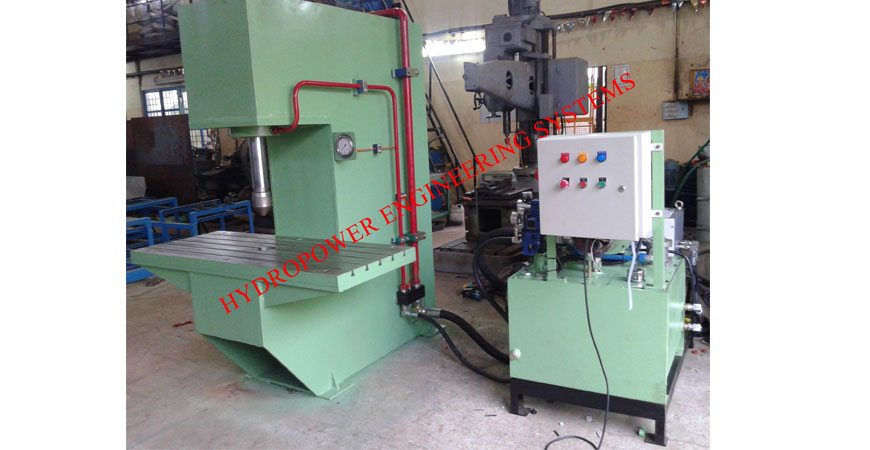

We design C-frame presses according to customer requirements. One of the typical customized C-frame press made by us for steel pipe bend removal application is mentioned below:

1. Capacity: 30 TON.

2. Working pressure: 170 BAR.

3. Daylight: 500mm .

4. Working throat: 300mm.

5. Ram stroke:250mm.

6. Table size: 1500X600mm

7. Working height: 800mm.

8. Vee Blocks: 2Nos.

9. Mode of operation: By push button.

10. Oil tank capacity: 150 Liters.

11. Low pressure pump: 40 LPM(approx)

12. High pressure pump: 4.15 LPM(approx)

13. Electric motor: 5H.P,1440RPM,3 PHASE.

14. T-slot size: T-14.

• Riveting

• Embossing

• Punching

• Straightening

• Stamping

• Crimping

• Assembling
