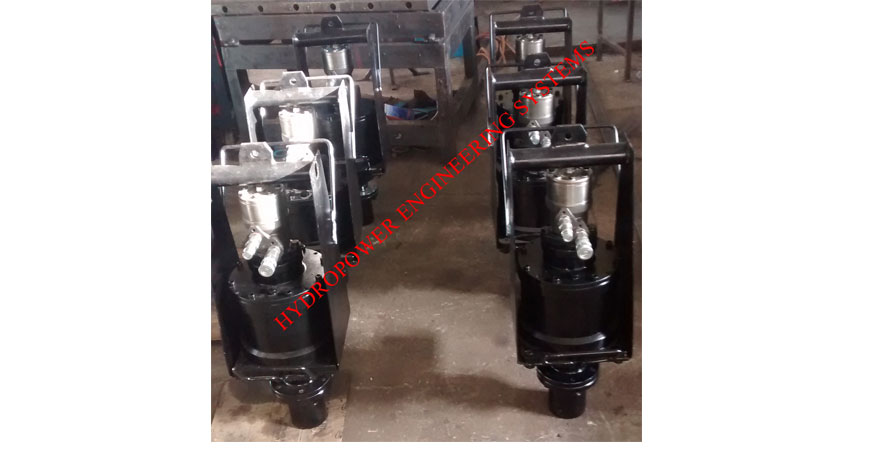

Rotor unit consists of Planetary gear box and Hydro motor. The output shaft of the rotor unit is connected with the drill bit. With the suitable lever arrangement the Rotor system can drill and make pit on the ground surface upto 50ft depth.

1. Output torque : 682 kg-m ( 5000 Ft-Lbs)

2. Gear Box Type : Planetary

3. Gear Ratio : 22.5 : 1.

4. Input Hydromotor Type : Orbital, Low Speed High Torque

5. Hydromotor Displacement : 250cc/rev..

6. Hydromotor Torque : 38 Kg-m.

7. Size : 250x260x749mm.

8. Weight : 102 Kg.
