These machines point the ends of the tubes which are clamped in Draw Benches for pulling the tubes through the drawing dies and plugs. Unlike other methods of pointing here the tube elongates thus allowing a considerable material saving. The points are concentric and straight and the length can be infinitely variable depending upon the pulling force of the Draw Bench. At the shoulder, the point thickens, hence it is very strong and rarely breaks during drawing, improving draw bench yields.

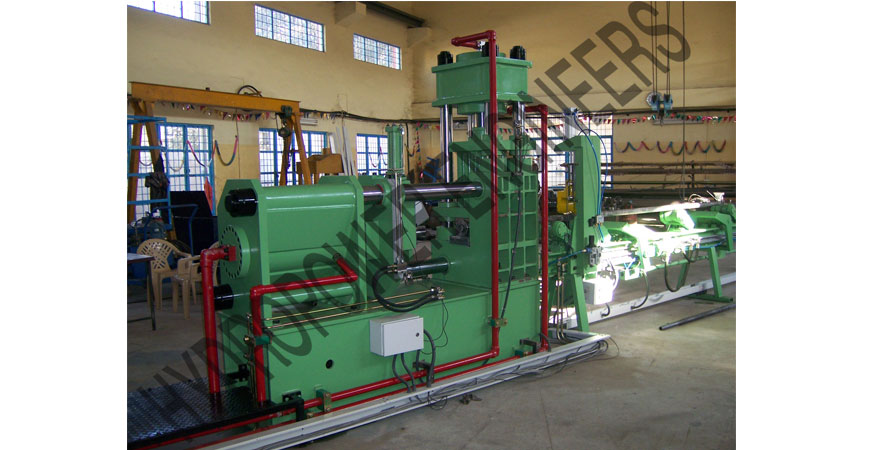

The hydraulically operated Push Pointing Machine considerably reduces raw material wastage. The machine is controlled by PLC. MMI enables control on pointing length.

1. Max. Diameter of the pointingcomponent : 175mm Max.

2. Pointing : 500 mm.

3. Max. Pointing force : 150 to 300 Ton & as per customer requirement .

4. Max. Power consumption : 40 HP.

5. Raw Material : Mild Steel / Stainless Steel.

It has wide variety of applications in,

• Auto mobiles.

• Boiler industries.

• Heavy engineering.

• Cooling system.

• Oil industries.
